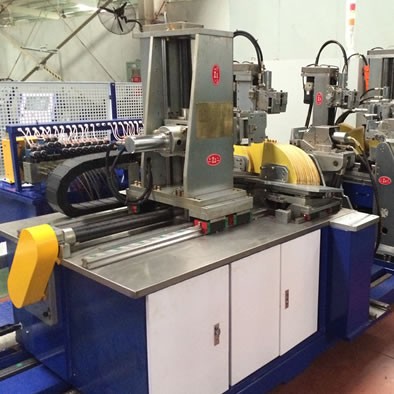

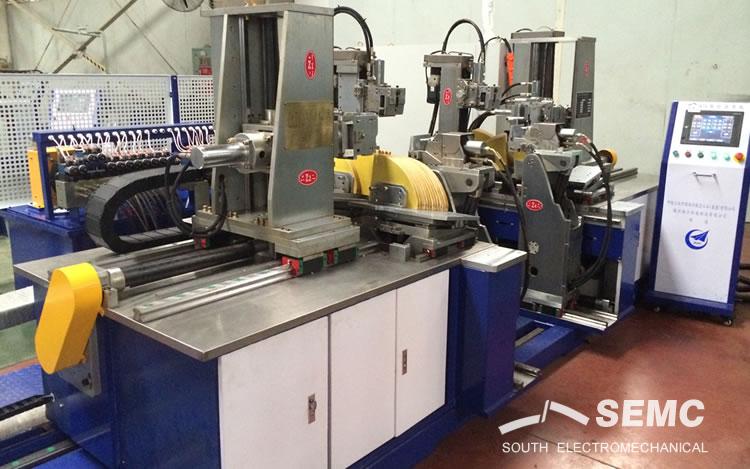

Model: SKZX Full Servo
SKZX 400x100
SKZX 250x90
SKZX 180x70
新型全數控漲型機是我公司開發的第三代線圈漲型設備。與我公司第二代漲型機相比，漲型精度更高、速度更快、成型效果更好、操作更方便。
一、本機特點
● 采用全數字控制，觸摸屏人機界面配置參數狀態圖，可按圖示線圈輸入相應尺寸，直觀方便。
● 采用伺服電機控制線圈的長度、端部高度、直線邊開距和角度。
● 操作高度約1.1米，并采用開啟式鼻夾機構，放、取線圈十分方便。
● 直線邊、鼻斷端部等夾持和頂弧機構采用液壓油缸驅動、液壓系統簡單。
● 具有多種規格型號，可實現直線邊長度3米以?xún)?、跨?.2米以?xún)?、兩直線邊夾角150°以?xún)鹊木€(xiàn)圈的漲型。
二、SKZX□□□×□□□全伺服數控漲型機主要技術參數
技術參數名稱 | SKZX 400 X100 | SKZX 250 X90 | SKZX 180 X70 |
漲型前的線圈梭心距范圍 | 600-4000mm | 500-2500mm | 400-1800mm |
線圈直線邊長度范圍 | 290-2500mm | 280-1800mm | 220-1250mm |
線圈總寬范圍 | 1000 | 900 | 700 |
最大線圈上、下層邊與中心線夾角 | 75° | 75° | 75° |
線圈上層邊最小圓半徑 | 120mm | 120mm | 110mm |
線圈直線部分夾鉗截面 | 4*10mm- 30*80mm | 4*10mm- 28*70mm | 4*10mm- 15*40mm |
Item | Paras. (before spreading) |
| model: SKZX250*90 as example | |
coil total length L1 range | 450～2700mm |
coil bobbin distance L2 range | 350～2500mm |
coil nose inner circle radius/mm | R10,R15,R20,R25 |
coil section width A range /mm | 5～28mm |
coil section height B range /mm | 20～70mm |
Item | Paras.(after spreading) |
| model: SKZX250*90 as example | |
3D coil straight line length L3 range | 230～1700mm |
3D coil total length L4 range | 350～2500mm |
3D coil total width(span）W range | 50～900mm |
3D coil nose up H range | -20～400mm |
3D coil nose deflection angle θ1 range | 0～35° |
angelθ2 range between 3D coil upper edge and center line | 0～75° |
angelθ3 range between 3D coil lower edge and center line | 0～75° |
3D coil nose to straight end length range | 70～550mm |
3D coil nose R range /mm | R10,R15,R20,R25 |
3D coil end arc radius R3/mm | R15，R25 |
3D coil straight edge and bevel arc radius R4/mm | R25/R30，R40/R50 |
3D bevel slot coil angle range | 0～7° |
3D coil up&down layer straight edge unequal length range/mm | ±20mm |
